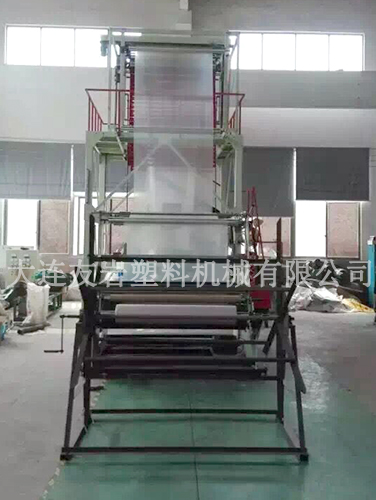

Technical specification of single-layer film blowing machine:
Model: SGM-30X30-500
Screw diameter: 30mm
Screw length / diameter ratio: L/D 30:1
Screw speed: r/min 17-170
Main motor power: 7.5kw
Maximum yield: 30kg/h
Product thickness: 0.003-0.10mm
Product maximum width: 450mm
Die size: 60mm 80mm 40mm
Total power of electrical equipment: 15kw
External dimensions (length x width x height): 5200mx1800mx3000mm
Machine weight: 1500kg
The unit mold except with reasonable flow design, main parts, key components are used processing equipment, ensure channel high accuracy and good surface accuracy, phantom interchangeability is strong, small resistance, material flow, temperature distribution is uniform, stable rotation of the body of the mold, good sealing performance. This machine adopts advanced technology, advanced technology of Germany lehou Schoenberg, design and manufacture. Its unit output is higher than the country's best similar products, production increased by 40%. This unit is suitable for raw materials: LDPE-HDPE-LLDPE-EAA Mao metal and other kinds of polyethylene raw materials, etc.. The production of plastic products, plastic good, good transparency, high surface finish, high density, strong resistance to penetration, improve the physical properties of the product.
