Monolayer film blowing machine

Current Location: Home >> Products >> Monolayer film blowing machine

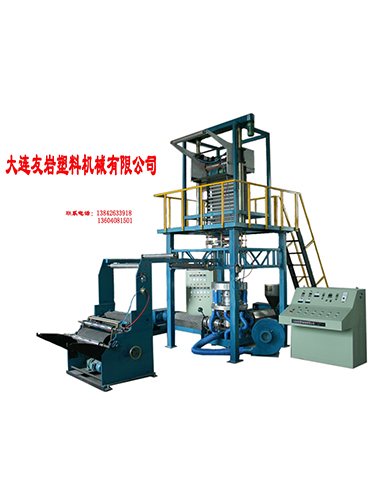

Monolayer film blowing machine

  • Category:Monolayer film blowing machine

  • Clicks:
  • Data:2015/12/15
  • More
  • Online Inquiry
Details

     Dalian monolayer film blowing machine company introduced advanced technology from abroad, is the production of plastic plastic film blowing machine equipment Professional Company, novel design, advanced technology, strong technical force, has a series of products and standardization, selling the country, favored by the majority of customers. Welcome to inquire! 0411-86260347


Uses:

  Monolayer film blowing machine is used for blowing low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE), Metallocene Linear low density polyethylene (MLDPE), polypropylene PP plastic film, widely used in food, fruit, clothing, textile, plastic film greenhouse film, pressure sheet composite membrane.


Characteristic:

  Monolayer film blowing machine adopts Germany Rhine Haosen advanced technology, advanced manufacturing technology. The main parts are the use of special equipment to ensure that the flow to higher accuracy and good surface roughness, the mold body is interchangeable with strong, small resistance, material flow, temperature distribution, the mold rotation stability, good sealing performance. The unit is better than the best of the same kind of product per unit output thirty percent single blow linear material, and ensure that it is a certain degree of height and transparency. The physical properties of the plastic products made by this unit are improved. Nose using Taiwan head. The unit runs reliably, the main output of the machine is up to the standard, the plastic effect is good, the precision of mould manufacturing and the surface roughness is high, traction, the winding tension is constant, the size can be adjusted, the collection is in order.


Technical specification:

Model: SGM-55X30-2000

Screw diameter: 55mm

Screw length diameter ratio: L/D 30:1

Screw speed: r/min 15-120

Main motor power: 30KW

Total electrical power: 45KW

Maximum output: 120kg/h

Product thickness: 0.006-0.10mm

Product maximum folding width: 1200mm

Die size: 160mm 250mm 120mm

Machine weight: 4000kg

Appearance scale (length x width x height): 5600mx3600mx5000mm


Model: SGM-50X30-2200

Screw diameter: 50mm

Screw length diameter ratio: L/D 30:1

Screw speed: r/min 15-150

Maximum output: 100kg/h

Product thickness: 0.005-0.10

Main motor power: 22kw

Appearance scale (length x width x height): 5200mx3200mx5000mm

Machine weight: 3500kg

Product maximum folding width: 1000mm

Die size: 160mm 220mm 120mm

Total electrical power: 32kw


    Dalian film blowing machine manufacturers to understand and choose your prompt blowing machine of their products, film blowing machine produced by our company have many kinds of single-layer film blowing machine, three double layer co extrusion film blowing machine, film blowing machine, do not believe that the most expensive myth also don't believe the cheapest myth, choose the suitable, welcome you give us a call.www.dlyouyan.com
