Coextrusion machine

Three-tier co-extrusion blown film machineDue to its good barrier property, fresh and well protected against dampness, frost proof, oxygen insulation, oil resistant, can be widely used for packing weight.Such as all kinds of fresh fruit, meat, pickles, fresh milk, liquid beverage, medical supplies, etc.

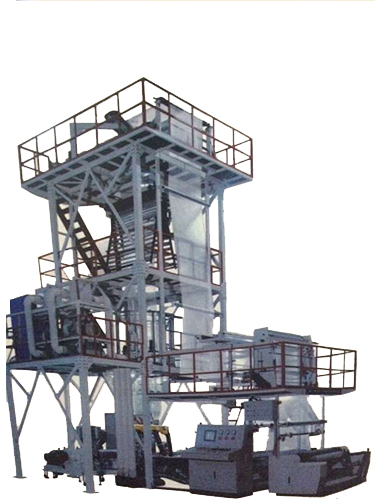

In rotary, membrane cold inside the bubble,Three-tier co-extrusion blown film lineSGXM-2200X3(2200/2600/3000)

Part 1, the host (extruder)

2 SJ60X30 extrusion machine (inner and outer) is placed 1 SJ70X30 (placed in the middle)

The screw diameter: 60 mm and 70 mm

Length to diameter ratio, spake (120).

The screw rotation speed: 120 RPM (120) 120 RPM (120).

Drive motor power: SJ60X30 extruder, 37 kw ac motor

SJ70X30 extruder, 45 kw ac motor

Extruder production capacity: SJ60X30 extruder, 160 kg/h (LDPE);

SJ70X30 extruder, 300 kg/h (LDPE)

2, traction, automatic winding

Traction motor power: 2.2 kw

Cutting way: fly knife cutting

The traction speed: 0-65 - m/min

11 m traction height:

Correction system: EPS

High dimension (width) 10.5 mX7.25 mX11m

3, mold,

Mouth mold diameter: 450 mm

4, inner cooling system: cooling device within the IBC

Part 5, the wind ring

The wind ring, double draught cooling air ring.The wind ring power: 7.5 kw

This factory take the old products, old equipment renewal and reconstruction.Has the new technical performance, low energy consumption, high yield.According to the requirements of the supporters design and processing all kinds of rotating head, rotating wind ring, etc to rapidly replace the device.Guarantees products, is responsible for the safe commissioning, operator training, welcome to negotiate the choose and buy.Telephone: 18624289888
