Three layer co extrusion film blowing machine because of its good barrier property, preservation, moisture, frost, oxygen, oil resistance, can be widely used in heavy packing. Such as a variety of fresh fruits, meat dish, pickles, fresh milk, liquid beverage, pharmaceutical products etc..

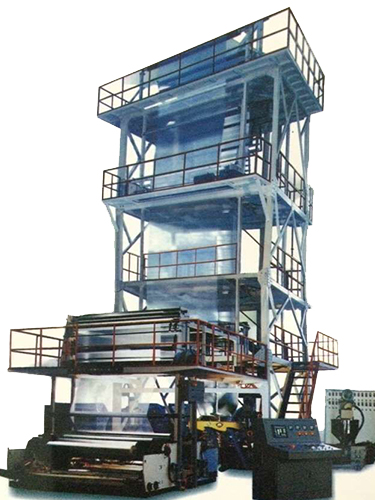

Traction rotation, internal bubble cooling, three layer coextrusion film blowing unit SGXM-2200X3 (2200/2600/3000)
SGXM-2200X3 three layer coextrusion film production line by 2 SJ60X30, 1 SJ70 extruder, die head, air ring, cooling system, 2200 traction and rolling equipment, electrical control system, the performance is as follows:
A, on the level of traction and positive and negative 360 degrees of rotation, so that the formation of the volume
B, IBC membrane bubble internal cooling system
C, suitable raw materials: LDPEHDPELLDPEMLLDPEEVA/ Mao and its mixture
D, CO extrusion die channel computer optimization design adapt to a variety of raw materials of composite extrusion
E, plug in the replacement, to adapt to different specifications of the film
1, the main engine part (extruder)
2 SJ60X30 extruder (placed inside and outside) 1 SJ70X30 (placed in the middle)
Screw diameter: 60mm and 70mm
Length to diameter ratio: 30:1 (120)
Screw rotation speed: 120rpm (120) 120rpm (120)
Drive motor power: SJ60X30 extruder, 37KW AC motor
SJ70X30 extruder, 45KW AC motor
Extruder production capacity: SJ60X30 extruder, 160kg/h (LDPE);
SJ70X30 extruder, 300kg/h (LDPE)
2, traction, automatic winding
Traction motor power: 2.2kw
Cutting: cutting knife
Traction speed: 0-65m/min
Traction height: 11m
Correction system: EPS
Dimensions: (length width height) 10.5mX7.25mX11m
3, mold,
Die diameter: 450mm
4, internal cooling system: IBC internal cooling device
5, the wind ring part
Wind ring: double outlet cooling air ring. Wind power: 7.5kw
Three layer coextrusion film blowing machine manufacturers to introduce advanced technology from abroad, specializing in the production of double film blowing machine, single layer three layer coextrusion film blowing machine, film blowing machine, film blowing machine. Three bags of products, responsible for the safety of debugging, Daipei operators, welcome customers to negotiate purchase.www.dlyouyan.com
