Double film blowing machine

Current Location: Home >> Products >> Double film blowing machine

Double film blowing machine

  • Category:Double film blowing machine

  • Clicks:
  • Data:2015/12/15
  • More
  • Online Inquiry
Details

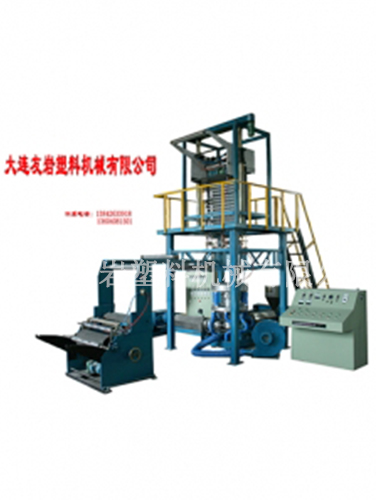

Double film blowing machine


Uses:

  Double film blowing machine for blowing low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE), Metallocene Linear low density polyethylene (MLDPE), polypropylene PP plastic film, widely used in food, fruit, clothing, textile, plastic film greenhouse film, pressure sheet composite membrane.


Characteristic:

  Double film blowing machine adopts Germany Rhine Haosen advanced technology, advanced manufacturing technology. The main parts are the use of special equipment to ensure that the flow to higher accuracy and good surface roughness, the mold body is interchangeable with strong, small resistance, material flow, temperature distribution, the mold rotation stability, good sealing performance. The unit is better than the best of the same kind of product per unit output forty percent single blow linear material, and ensure that it is a certain degree of height and transparency. The physical properties of the plastic products made by this unit are improved. Nose using Taiwan head. The unit runs reliably, the main output of the machine is up to the standard, the plastic effect is good, the precision of mould manufacturing and the surface roughness is high, traction, the winding tension is constant, the size can be adjusted, the collection is in order.


Technical specification:

Model: SGM-70X30-2000

Screw diameter: 70mm

Screw length diameter ratio: L/D 30:1

Screw speed: r/min 20-120

Main motor power: 45KW

Maximum output: 240kg/h

Product thickness: 0.005-0.10mm

Product maximum folding width: 1900mm

Die size: 400mm

Total electrical power: 68kW

Appearance scale (length x width x height): 7000mx3600mx7000mm

Machine weight: 6800kg



Model: SGM-90X30-3000

Screw diameter: 90mm

Screw length diameter ratio: L/D 30:1

Screw speed: r/min 20-120

Main motor power: 75KW

Maximum output: 450kg/h

Product thickness: 0.006-0.15mm

Product maximum folding width: 2900mm

Die size: 680mm

Total electrical power: 108kw

Appearance scale (length x width x height): 9500mx4600mx1200mm

Machine weight: 8500Kg

Model: SGM-80X30-2200

Screw diameter: 80mm

Screw length diameter ratio: L/D 30:1

Screw speed: r/min 20-120

Main motor power: 55kW

Maximum output: 320kg/h

Product thickness: 0.006-0.15mm

Product maximum folding width: 2100mm

Die size: 500mm

Total electrical power: 78kw

Appearance scale (length x width x height): 7000mx4200mx8000mm

Machine weight: 7500kg



Model: SGM-60X30-1600

Screw diameter: 60mm

Screw length diameter ratio: L/D 30:1

Screw speed: r/min 20-120

Main motor power: 37KW

Maximum output: 160kg/h

Product thickness: 0.005-0.10mm

Product maximum folding width: 1200mm

Die size: 160mm 250mm 120mm

Total electrical power: 45KW

Appearance scale (length x width x height): 5600mx3000mx5000mm

Machine weight: 4000kg


    Manufacturer of production of plastic film blowing machine, film blowing machine, monolayer film blowing machine, film blowing machine coextrusion film blowing machine. Bear the old products, old equipment renewal and transformation, so that it has a new technical performance, low energy consumption, high output. Welcome customers to negotiate, purchase.
